STAR-System for QNX

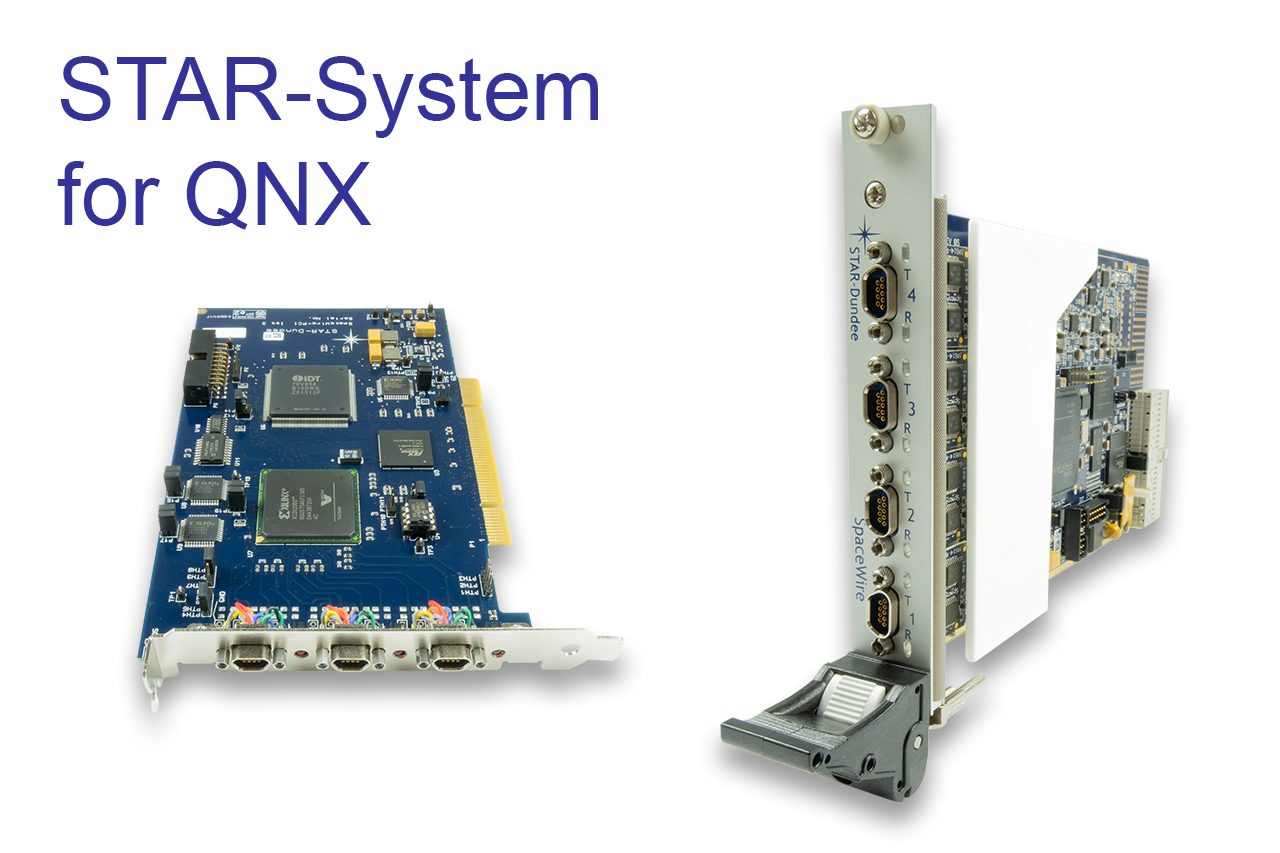

STAR-Dundee’s QNX driver supports the SpaceWire PCI Mk2, SpaceWire cPCI Mk2 and SpaceWire PCIe interface boards, on the real-time operating system QNX. The driver API, common across all STAR-System supported platforms, is provided as a custom interface QNX driver in the form of a compiled C library.

Product Features

  • Both a high level and low level API

  • Works with SpaceWire PCI Mk2, SpaceWire cPCI Mk2 and SpaceWire PCIe interface devices

  • Multiple boards can be supported on the same target

  • Detailed user manual and example code help users get started quickly

Technical Specs

  • Part Number

    130

  • QNX Version supported
    • 6.5

  • Supported Languages and Environments
    • C

    • C API can be used in C++

    • C++ (full support planned)

  • Provided STAR-System APIs and Modules
    • STAR API

    • RMAP Packet Library

    • Configuration APIs

  • STAR-System GUI Applications supplied
    • Device Configuration

    • Simple Tx

    • Simple Rx

    • Advanced Tx

    • Advanced Rx
