SpaceWire EGSE and Device Simulator Mk2 Now Available!

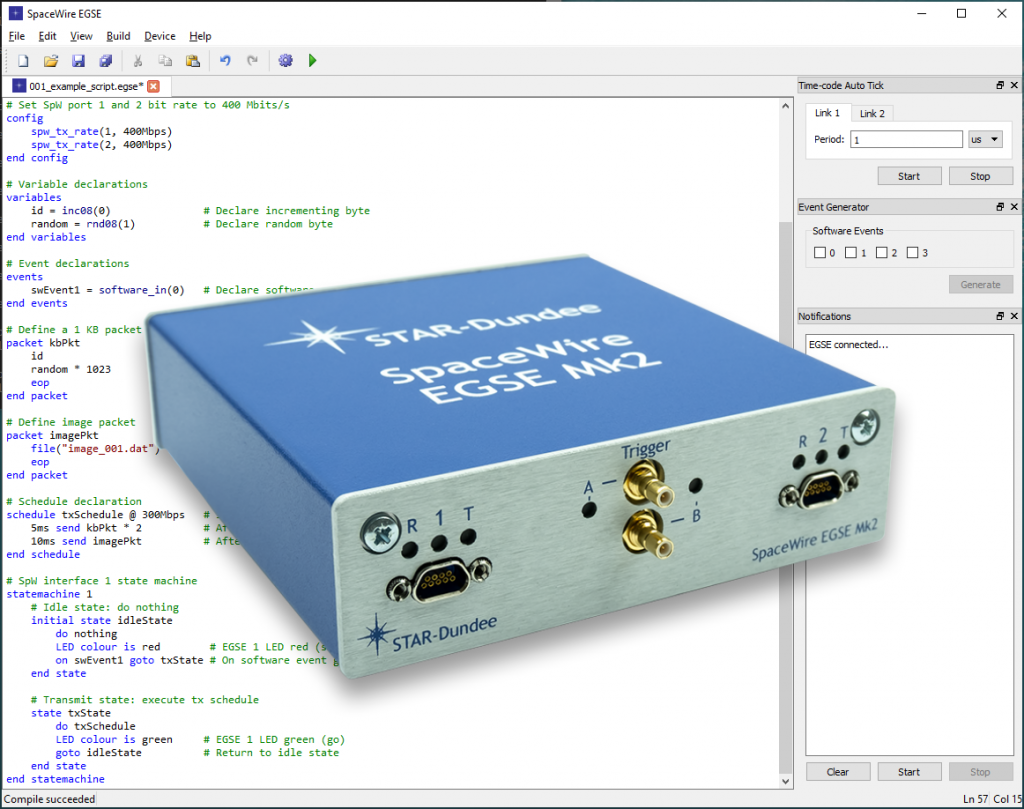

SpaceWire EGSE Mk2 Hardware and Software

A new version of our SpaceWire EGSE and Device Simulator has been released! Like its predecessor, the SpaceWire EGSE Mk2 can be used to very quickly create SpaceWire instrument and equipment emulations. This is done using a scripting language designed specifically for SpaceWire applications.

The SpaceWire equipment behaviour required can be quickly and accurately defined in a script. The script is then compiled on a host PC and the resulting configuration file loaded into the SpaceWire EGSE Mk2 unit. The EGSE Mk2 then immediately begins to operate as defined in the script, functioning independent of software, resulting in real-time performance and precise emulation.

The SpaceWire EGSE Mk2 supersedes the original SpaceWire EGSE. It now supports SpaceWire link speeds up to 400 Mbit/s (previously 200 Mbit/s); the on-board memory in which packet data is stored has been increased in size to 512 MB (previously 128 MB); and a USB 3.0 interface (previously USB 2.0) is now used to connect the unit to a host PC. Compared to the original SpaceWire EGSE, these improvements mean traffic can be transmitted and received at higher link speeds; a larger quantity of pre-defined packet data can be stored in memory; and compiled scripts can be loaded into hardware faster.

More information is available on the SpaceWire EGSE Mk2 product page.

SpaceWire Link Analyser Mk3 Now Available!

Link Analyser Mk3 Hardware and Software

Essential for validating and debugging a SpaceWire link, our latest model of the SpaceWire Link Analyser is now available!

The Link Analyser Mk3 can capture and display bi-directional traffic travelling over a link; it can display live link statistics; and it can output decoded SpaceWire link characters and events to an external logic analyser. The traffic visibility this provides greatly helps to validate a link is operating correctly and aids debugging when problems are detected. Without such traffic visibility, there is an increased risk that issues go undetected and problems may take significantly longer to resolve.

Building on the capabilities of previous models, both the Link Analyser hardware and software are significantly improved. Hardware improvements mean much larger quantities of traffic can be captured, on SpaceWire links operating at faster speeds, and can be uploaded to a host PC more quickly. The software has been completely rewritten, retaining familiar views and useful functionality from the Mk2, whilst removing limitations of the previous software and adding new features.

More information is available on the SpaceWire Link Analyser Mk3 product page.
