6U Front Panel

A 6U front panel to replace the standard SpaceWire Router Mk2. The panel has holes for each of the 8 front-facing SpaceWire ports, their multi-coloured status LEDs, and the external triggers. This makes it easy for the SpaceWire Router Mk2 to be placed in a rack or unit which can accommodate the 6U front panel. A supporting plate is included with 6U panel to increase the structural integrity, as are all fixings required to attach the plate to the panel. The panel can be fixed by STAR-Dundee if purchased at the same time as a SpaceWire Router Mk2 if required.

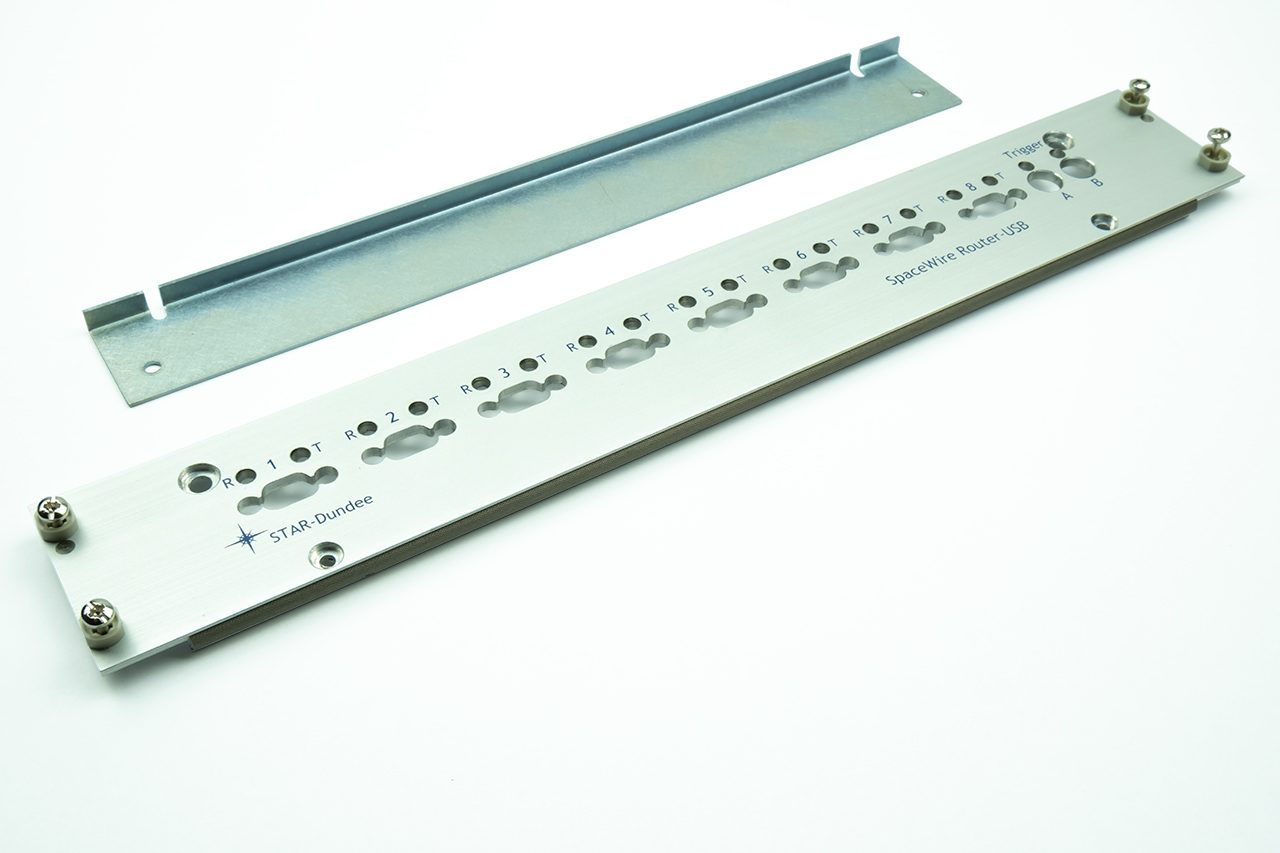

The 6U front panel includes a supporting plate

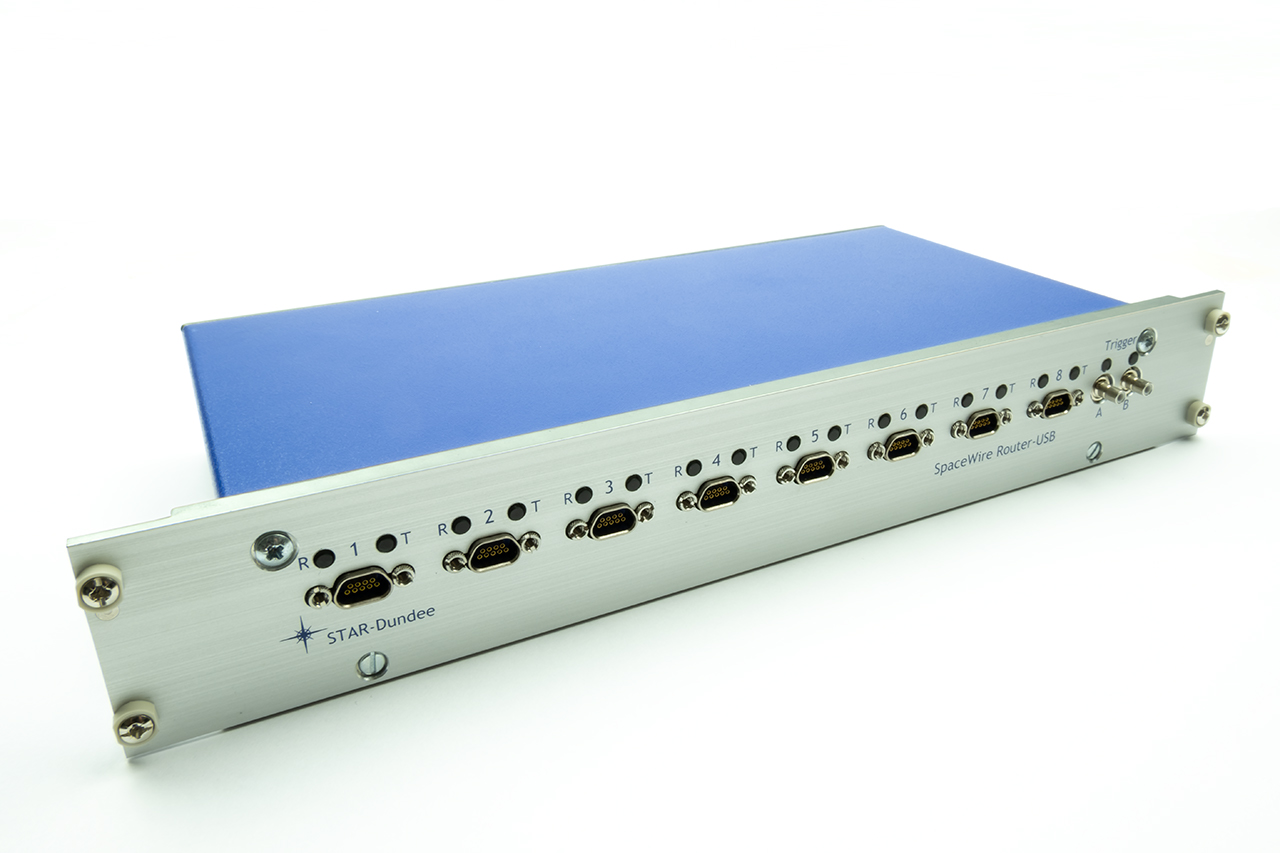

The 6U front panel replaces the standard SpaceWire Router Mk2 front plateThe 6U front panel replaces the standard SpaceWire Router Mk2 front plate
